Technical Specifications


The TW3 is compact level winder designed for placement downstream of a slitter to collect edge trim waste.  The unit operates by automatically adjusting speed to maintain constant tension on the web trim with a high-friction surface-drive roller which is driven by a permanent magnet DC motor with electronic torque control.  Torque is adjusted during setup by a potentiometer on the end panel.  The surface drive maintains consistent torque regardless of trim roll size

Edge trim is wound on disposable cardboard cores inserted on a rugged mandrel which is centered on the drive roll by two vertical guide rails.  Unloading is accomplished by lifting the core mandrel up and out of the guide rails.  Sturdy steel construction and industrial sealed ball bearings are used throughout.  Sheet metal covers enclose the drive components, electrical parts and transversing mechanism.

Web Capacity

Creates Roll 18" Wide X 18" Dia.
Maximum Recommended Roll Weight = 100 lbs

Systems have been Engineered with Widths from 12" to 36" and Diameters to 36".

Web Speed

0-500 ft/min Standard

0-700 ft/min, 0-1000 ft/min, 0-1500 ft/min

Web Tension

User Adjustable to 5 pounds via Control Panel.

Engineered to Customer Specification or Sample Web Material.

Guide Ring

1.5" I.D. Polished Stainless Steel Ring

Stainless Steel Rings to 4" I.D.
Teflon Rings for Adhesive Coated Webs.

Core Mandrel

Sized for 3" Cardboard Tube Cores.

Sized to Customer Specification or Sample Core.

Drive Roller

6" Roller Coated with High-Friction Composite Elastimer

Polyurethane Coating for Abrasive Web Materials.

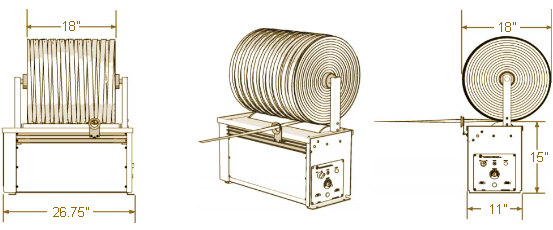

26.75" Wide X 11" Deep.  Height (w/o Trim Roll) = 26"
Center of Guide Ring is 15" From Mounting Surface.

Dependant on Web Capacity Requirements and Customer Specification.


Approximate Shipping Weight = 125 lbs.

Dependant on Web Capacity Requirements and Customer Specification.


120VAC, 1PH, 50/60 HZ, 300VA
12' Cord, NEMA-15 Plug.

220VAC, 1PH, 50/60 HZ, 300VA
12' Cord, Pigtail.


Four 3/8" Holes on Steel End Flanges.

Heavy Duty Lockable Casters for Mobility.


Industrial Mocha Brown.

Custom and OEM Colors, Finishes and Labeling per Customer Specification.


Limited 1-Year Parts and Labor

Limited 1-Year Parts and Labor

Standard TW3 Configuration

Custom Configurations
